Kernel exploitation for newbies: from compilation to privilege escalation

Preparations

To accomplish the above goals, you’ll need the following utilities:

• GCC – a C compiler (to compile the kernel);
• GDB – a debugger (to debug the kernel);
• BC – a tool required to build the kernel;
• Make – a handler for kernel compilations recipes;
• Python – the interpreter for the Python language (to be used by GDB modules);
• pacstrap or debootstrap – system deployment scripts (required to build rootfs);
• any text editor (Vim or nano will be OK) to write the module and a recipe for it; and
• qemu-system-x86_64 – a virtual machine to run the kernel.

This humble set of tools is sufficient to build a kernel and exploit its module containing a vulnerability.

Kernel

First of all, you have to build a Linux kernel.

For the experimental purposes, I suggest taking the most recent stable kernel from kernel.org. At the time of the writing, it was Linux 5.12.4. In fact, the kernel version is unlikely to affect the result of the experiment; so, you can safely take the most current one. Download the archive, execute the command tar xaf linux-5.12.4.tar.xz, and go to the newly-created folder.

Configuration

You don’t have to build a universal kernel that can be run on any hardware. All you need is to run it in QEMU, and the basic configuration suggested by the developers is quite suitable for this purpose. Still, you have to make sure that you’ll have debugging symbols after the compilation and that you don’t have a stack canary (I’ll discuss this bird in more detail later).

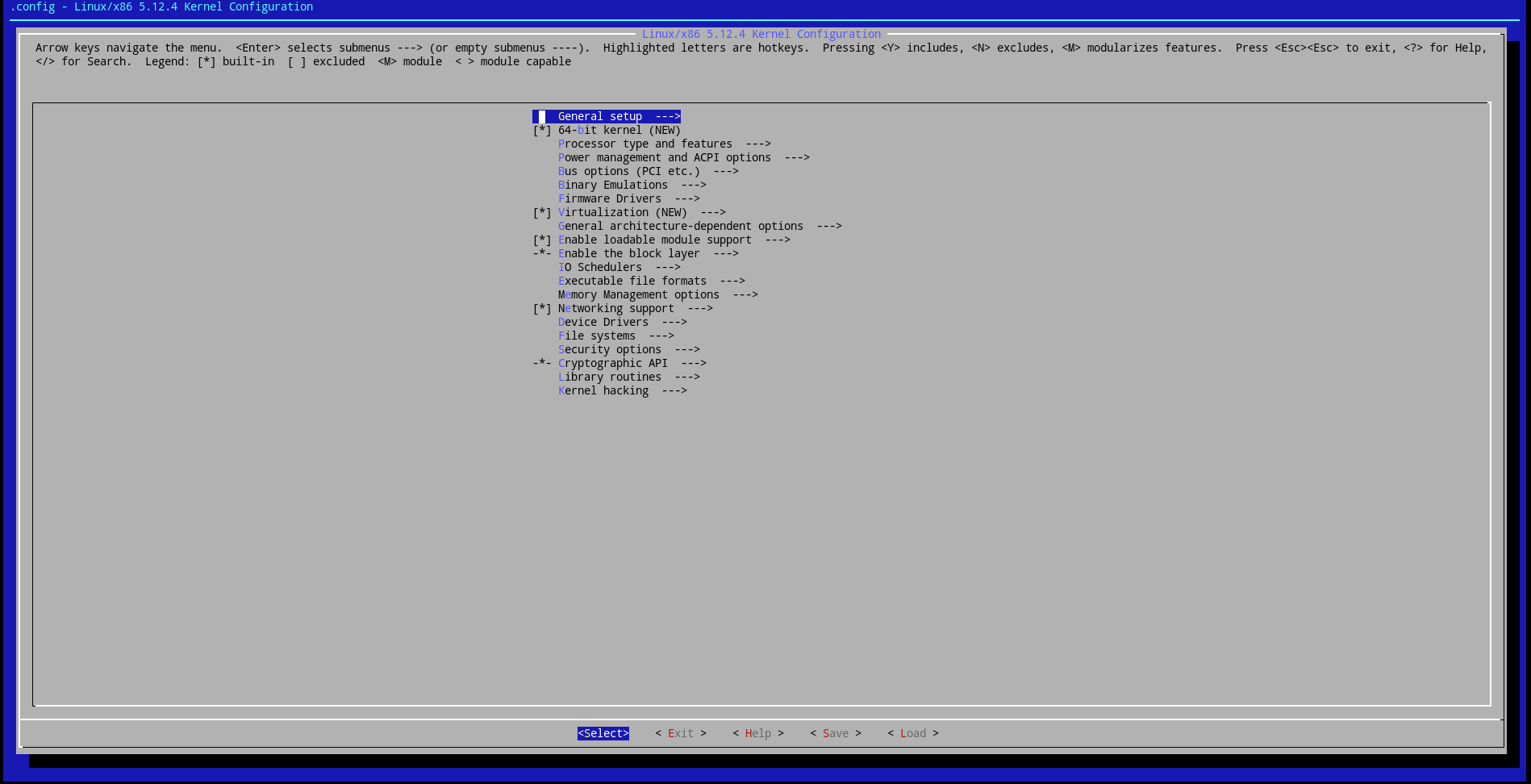

There are many ways to set a correct configuration, but I strongly recommend to use menuconfig since it’s convenient and doesn’t require a GUI. Run the make menuconfig command, and you’ll see the following picture.

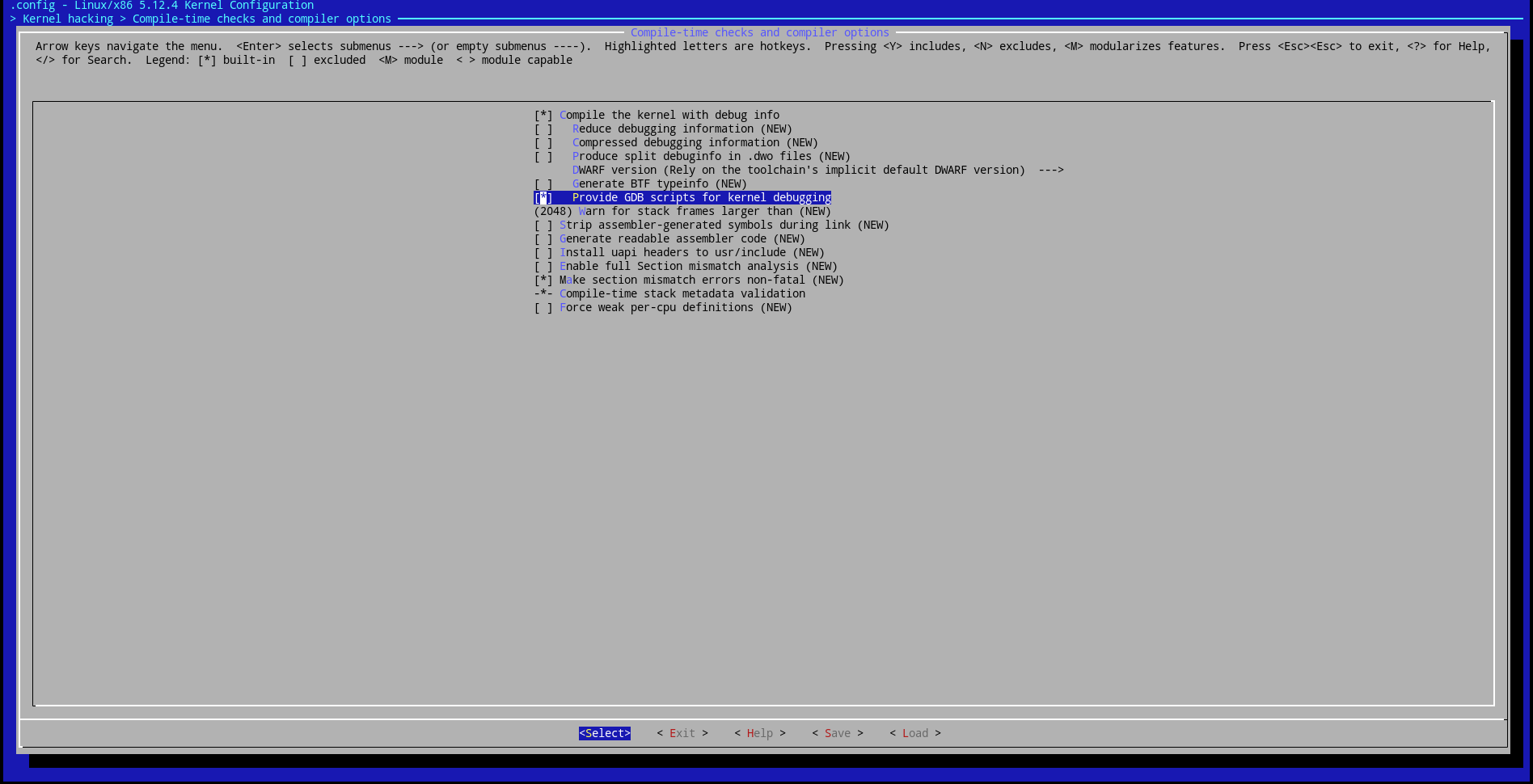

To enable debugging symbols, go to Kernel hacking → Compile-time checks and compiler options. Select “Compile the kernel with debug info” and “Provide GDB scripts for kernel debugging.” In addition to the debugging symbols, you’ll get a very useful script vmlinux-gdb.py: a GDB module that helps to determine such things as the module base address in kernel memory.

Now you have to disable the stack protector to make your module exploitable. To do this, return to the main configuration screen, then go to “General architecture-dependent options”, and disable the “Stack Protector buffer overflow detection” function.

Press the “Save” button and exit the configuration windows. Later, you’ll see what this setting does.

Kernel compilation

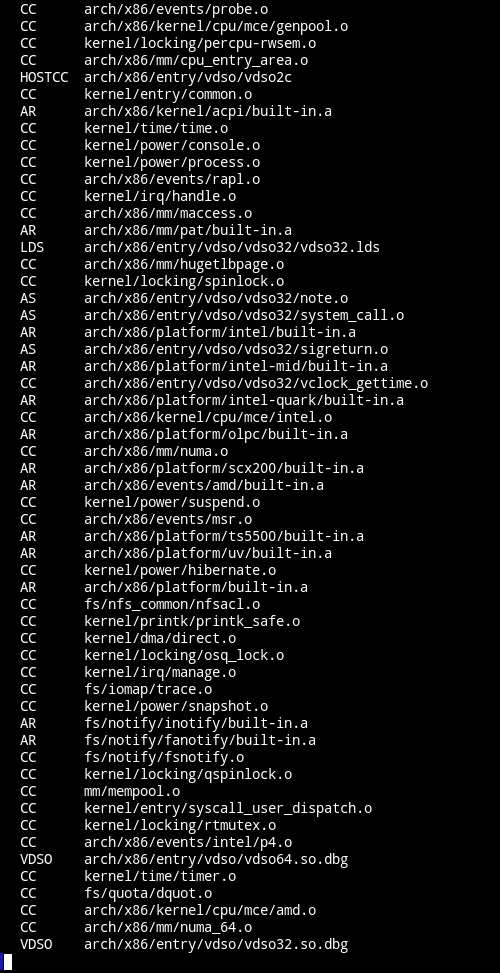

There is nothing complicated there. Execute the command make -j<threads> (threads is the number of threads you want to use for kernel compilation) and watch the process.

The compilation speed depends on the processor: on a powerful computer, it takes some five minutes; on a weak one, much longer. In the meantime, you can continue reading this article.

Kernel module

The Linux kernel includes special files called character devices. In simple terms, a character device is a kind of a ‘device’ that can be used to perform basic operations, such as reading from and writing to it. But sometimes, this device may be paradoxically absent on your PC. Imagine, for instance, a device with the path /dev/zero; if you read from it, you’ll get zeros (zero bytes or \x00 in C notation). Such devices are called virtual ones, and the kernel includes special read and write handlers for them. You are going to write a kernel module that will enable you to write to the device (let’s call it/dev/vuln), and the write function for this device (the one called by the write system call) will contain a buffer overflow vulnerability.

Module code and explanations

Create the vuln subfolder to store the module in the folder with the kernel source code and place there the file vuln.c with the following content:

This module creates a vuln device in /dev, and this device allows to write data to it. Its path is simple: /dev/vuln. One might ask: what about the functions not supplied with comments? The answer is: their descriptions are available in this repository. Chances are high that you find there all functions documented in the Linux kernel in the form of man pages.

Vulnerability

Note the vuln_write function. 128 bytes are allocated on the stack for a message that will be written to your device and then outputted to kmsg, the device for kernel logs. However, both the message and its size are controlled by the user, which makes it possible to write much more data than originally intended. In such a situation, a buffer overflow on the stack is inevitable, which leads to the subsequent control of the RIP (Relative Instruction Pointer) register, thus, enabling the attacker to create a ROP Chain. I’ll explain this in more detail in the section describing the vulnerability exploitation.

Module compilation

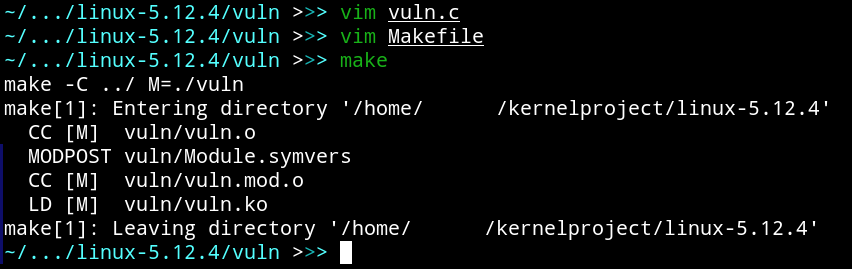

Module compilation is a pretty trivial task. To do this, create in the folder with the module source code a Makefile with the following content:

After the compilation, the vuln.ko file will appear in the folder. The ko extension means Kernel Object, and it’s slightly different from regular .o objects. Congrats! You have built the kernel and a module for it. But before running it in QEMU, a few more operations have to be performed.

Rootfs

Contrary to popular belief, Linux by itself is not an operating system. This is just a kernel that constitutes a fully featured PC only in combination with GNU utilities and programs. By the way, its official name is GNU/Linux. If you start Linux alone, it will report a Kernel panic and notify you that there is no file system that can be used as the root. Even if there is a file system, the kernel will first try to start init, a binary representing the main daemon process in the system that starts all services and other processes. If this file doesn’t exist or doesn’t work properly, the kernel will report panic. Therefore, you have to create a partition with userspace programs. For this purpose, I use pacstrap, a script installing Arch Linux. If you work with a Debian-like system, you can use debootstrap.

Possible variants

There are many ways to build a fully functional system; for instance, you can use LFS (Linux From Scratch), but this is too complicated. It’s also possible to create initramfs (a file with a minimal filesystem required to perform some tasks prior to loading the main system). But the disadvantage of this method is that it’s difficult to make such a disk and even more difficult to edit it: the disk will have to be rebuilt from scratch. Therefore, let’s use another option: creation of the complete ext4 filesystem in a file.

Making disk

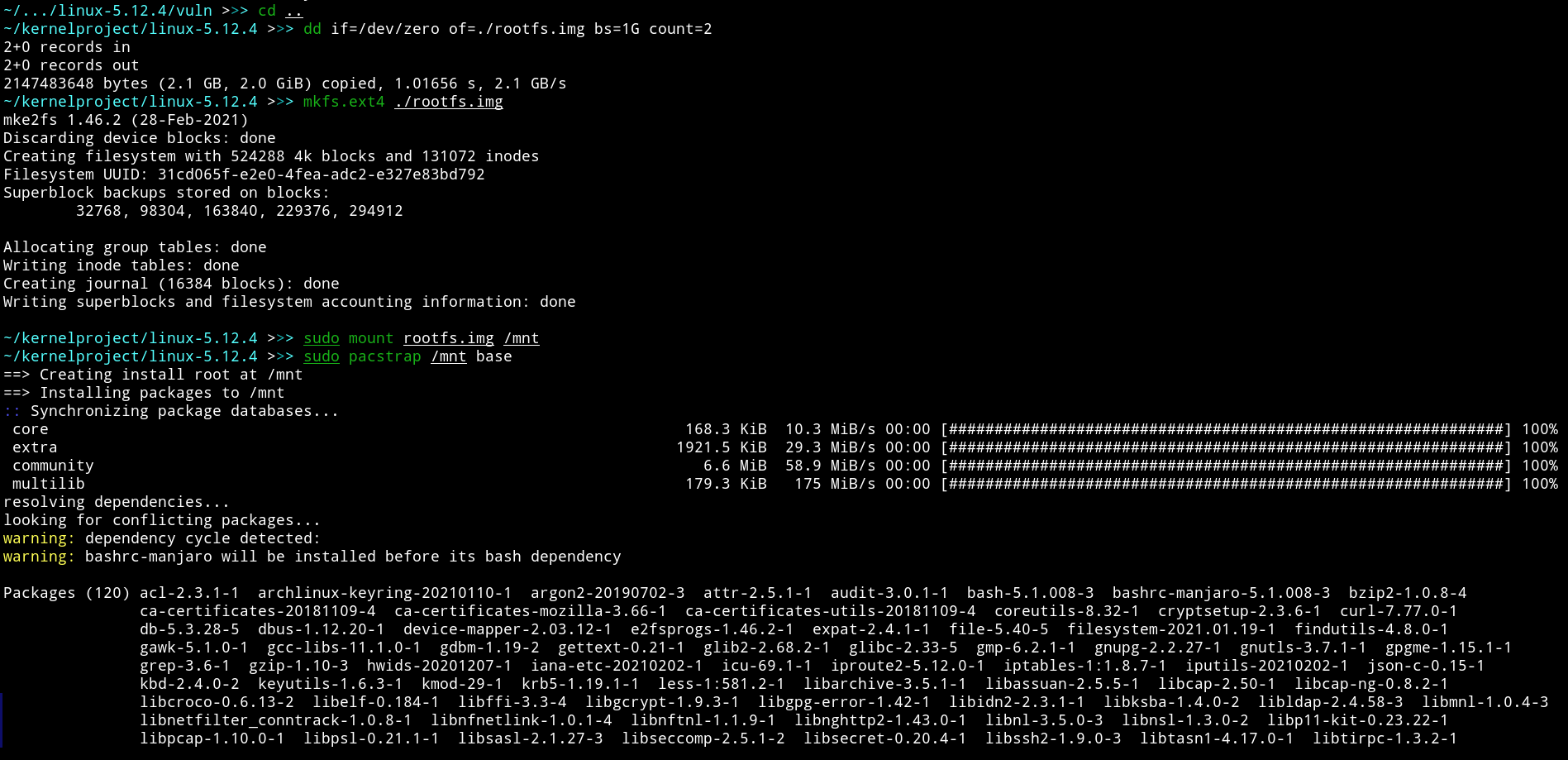

First, you have to allocate space for the filesystem. To do this, execute the command dd if=/dev/zero of=./rootfs.img bs=1G count=2. It will fill rootfs.img with zeros and set it size to 2 GB. Then you have to create the ext4 partition in this file. Run mkfs.ext4 ./rootfs.img. You don’t need the superuser rights since the filesystem is created in your file. And the last operation prior to the system installation is: sudo mount ./rootfs.img /mnt. Now you’ll need the superuser rights to mount this file system and perform manipulations inside it.

Installing Arch

Sounds scary? Don’t worry, when it comes to Manjaro or another similar Arch Linux system, everything is quite simple. There is a package in the repositories called arch-install-scripts, and it containspacstrap. After installing this package, execute the command sudo pacstrap /mnt base and wait until all the main packages are downloaded.

Then copy vuln.ko using the command:

Now the module is in the system.

Configuring the filesystem from inside

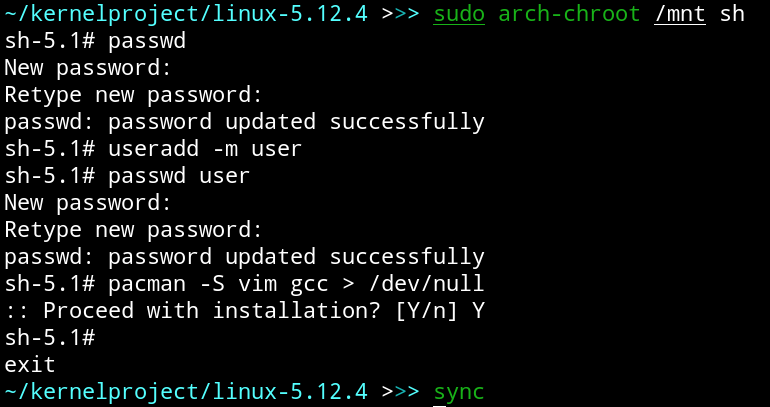

To be able to log into the system, you have to set up a superuser password. For this purpose, use arch-chroot, it will automatically prepare the entire environment in the newly-created system. Run the command sudo arch-chroot /mnt and then passwd. Now you can log into the system after the boot-up.

You will also need two packages: GCC and any text editor (e.g. Vim). They are required to write and compile the exploit. To get these packages, use the command apt install vim gcc on a Debian system and pacman -S vim gcc on an Arch-like OS. In addition, you have to create an unprivileged user on whose behalf you will test the exploit. To do this, run the commands useradd -m user and passwd user so that it has a home folder.

Exit chroot by pressing Ctrl + d and type sync (just in case).

Final touches

Mount rootfs.img using the command sudo umount /mnt. After writing to /mnt, I always execute sync to make sure that the written data aren’t lost in the cache. Now you are ready to run the kernel with your handmade module.

Running the kernel

After the compilation, the compressed kernel is located in <kernel sources>/arch/x86/boot/bzImage. Even though it’s compressed, the kernel will run smoothly in QEMU because this is a self-extracting binary.

Provided that you are in the <kernel sources> folder and rootfs.img is also located there, the command starting the kernel will be as follows:

In kernel, you specify the path to the kernel, append is the kernel command line, console=ttyS0,115200 indicates that the output will be transmitted to the ttyS0 device at a baud rate of 115,200 bps (this is a serial port from where QEMU gets the data). The argument root=/dev/sda makes the disk that you have enabled with thehda key the root filesystem, while rw makes this filesystem accessible for reading and writing (by default, it’s read-only). The nokaslr parameter disables the randomization of addresses of kernel functions in the virtual memory. This option will simplify exploitation. Finally, -nographic launches the kernel without a separate window (i.e. right in the console).

After launching the kernel, you can log in and access the console. However, if you go to /dev, you won’t find your device. To make it appear, you have to run the command insmod /vuln.ko. Startup messages will be added to kmsg, and the vuln device will appear in /dev. However, there is a little problem: /dev/vuln has permissions of 600. For exploitation, you need permissions of 666 or at least 622 so that any user can write to this file. Of course, you can manually enable a module in the kernel and change the permissions of a device, but this would be unprofessional. Just imagine that this is an important module that must be always launched together with the system. Therefore, this process must be automated.

Service for systemd

There are many ways to automate boot processes: you can write a script in /etc/profile, you can place it in ~/.bashrc, or you can even rewrite init so that your script starts first and the rest of the system – after it… However, the easiest way is to write a module for systemd, the program that is init itself and can automate things in an orderly way. Further steps will be performed in the system running in QEMU, and it will save all changes you have made.

The service itself

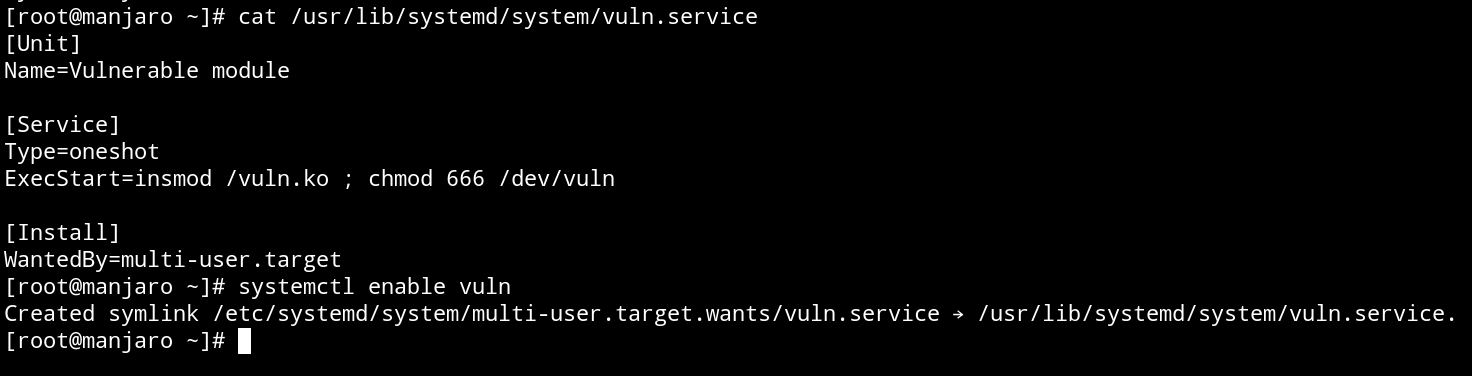

Basically, you have to do two things: load the module to the kernel and change the /dev/vuln permissions to 666. The service is run as a script: once during the boot-up. Therefore, the service type is oneshot.

This code has to be stored in /usr/lib/systemd/system/vuln.service.

Running the service

Since the script must be run during the boot-up, the systemctl enable vuln command has to be executed on behalf of superuser.

After the restart, the vuln file in /dev/ will gain the rw-rw-rw- permissions, which is great. Time has come for the most exciting part of the experiment. Press Ctrl + A, C, and D to exit QEMU.

Kernel debugging

You have to debug the kernel to see how it works during your calls. This will give you an idea of how to exploit the vulnerability. Seasoned pentesters are most likely aware of One gadget in libc, a standard Linux C library that allows to run /bin/sh from a vulnerable program in userspace almost immediately.

GDB and vmlinux-gdb.py

To make your job easier, I strongly recommend using GEF. This GDB module shows the states of registers, stack, and code during runtime. You can get it here.

The first step is to allow the loading of third-party scripts, namely vmlinux-gdb.py (that is currently stored in the source code root folder, as well as vmlinux, the file with kernel symbols). Later, this script will help you to find out the base address of the kernel module. To do this, add the line set auto-load safe-path / to ~/.gdbinit. Now, to load the symbols and the code, run the gdb vmlinux command. After that, start the kernel.

Remote kernel debugging

You already know how to start the kernel. The only problem is that it cannot be debugged. To enable debugging, you need QEMU to run a GDB server. To do this, add -gdb tcp::1234 to the command (tcp is the connection protocol, while 1234 is the port). Start the kernel using the modified command and launch GDB in another window. To connect to the kernel, execute the command target remote localhost:1234. The kernel will stop and wait for your actions.

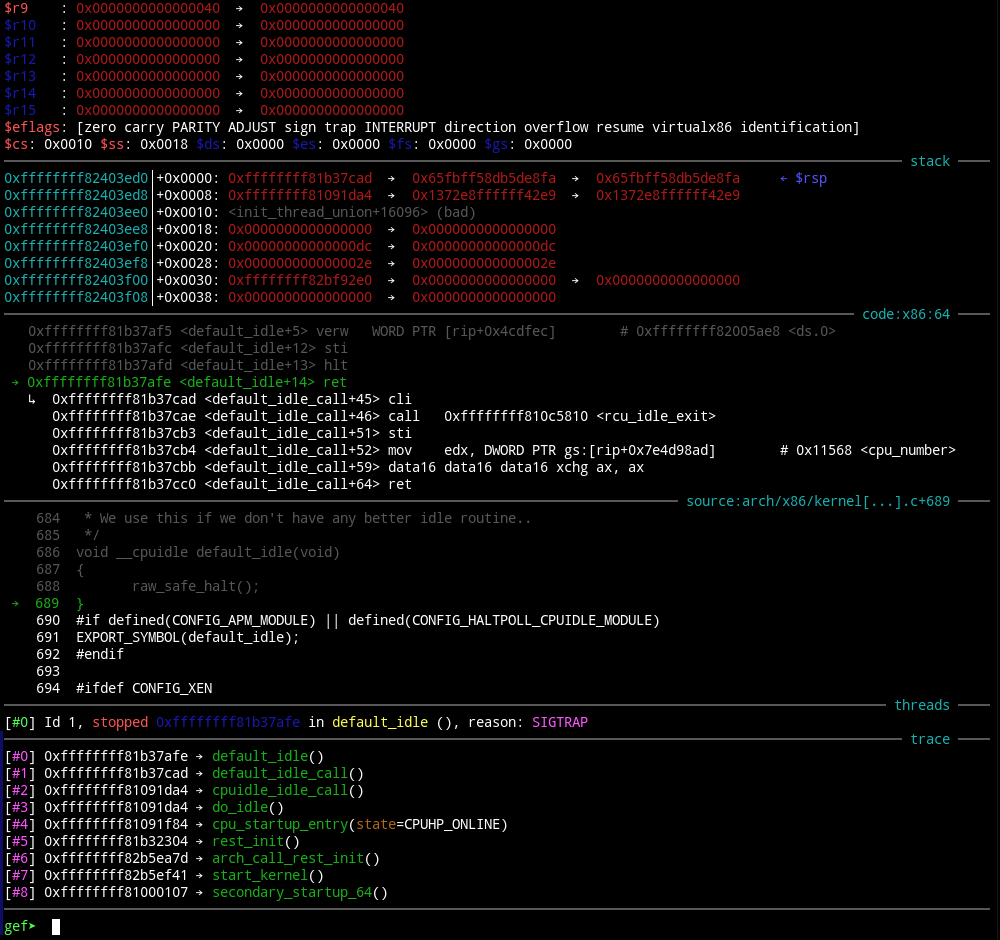

You can see that QEMU is now frozen in a specific state because the kernel is stopped. Use the continue command in GDB to resume its work. To pause, press Ctrl + C.

Exploitation strategy

In essence, kernel exploitation means privilege escalation – in most cases, to root. One of the ways to achieve this goal is as follows: you have to call the commit_creds function with the init_cred argument. Commit_creds will grant the privileges described in init_cred to the process. Init_cred, in turn, has the permissions of the process number one (i.e. init, the maximum possible privileges in userspace). In the kernel code, it looks as follows:

A more detailed description of this function is available in the above-mentioned repository. Overall, you have to somehow execute commit_creds(init_cred) while writing data to the vulnerable device. Let’s figure out how to do this.

Calling convention

Experienced pentesters can skip this section and two subsequent ones. Imagine that you have some standard code in C (e.g. sum(3, 2);). In its original form, the code looks very simple, but the processor doesn’t work with the source code: it uses instructions generated by the compiler. For the processor, this string will look as follows:

As can be seen from the code, the first argument is stored in the RDI register; while the second one, in RSI. The output of this function (in this case, most likely 5) will be stored in the RAX register. The x86_64 architecture includes 16 main fast registers: RAX, RBX, RCX, RDX, RDI, RSI, RSP, RBP, and R8-R15; each of them stores 64 bits of information. So, to call the commit_creds(init_cred) function, you have to place the init_cred address to the RDI register and then call commit_creds. Another important register is RSP (Relative Stack Pointer). This register stores a pointer to the stack from where the addresses are taken (e.g. for the ret or pop instructions).

ret

Ret is an instruction that takes the last 64-bit value from the stack and jumps there. How to use it for your purposes? The point is that the only thing you can actually control is the stack. Almost any function in assembler ends with the ret instruction that passes control to the calling function. If you can overwrite the so-called ret-address (the one that takes ret from the stack), then you can control the code execution process, which is very useful. So, all you have to do is write init_cred to RDI.

Gadgets: pop rdi ; ret

Any compiled program includes small pieces of code that can be used to build a ROP chain. ROP (Return Oriented Programming) is a binary exploitation technique that allows you to write your own program inside the target program (provided that you control the stack), and your program performs whatever you need. These small pieces of code are called gadgets.

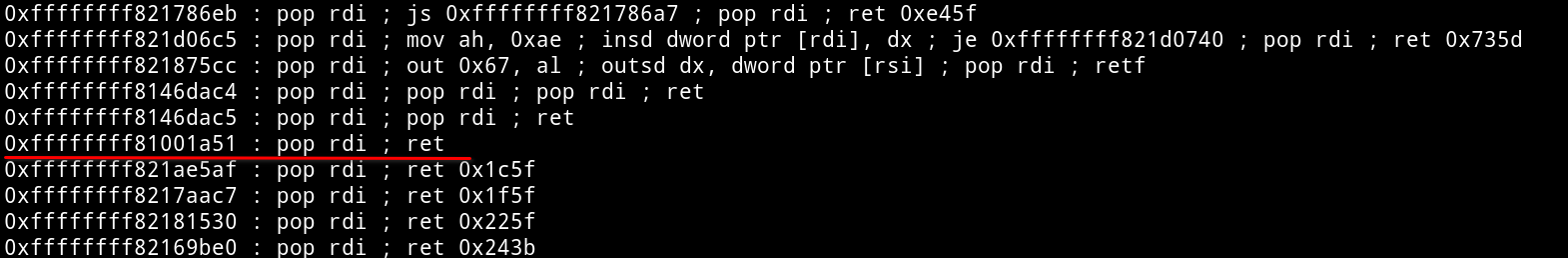

You have to find a gadget that takes a value from the stack you control, puts it in the RDI register, and shifts the pointer to the stack. The pop instruction is ideal for this. It takes a value from the stack, puts it into the register, and shifts the stack. Then you need the ret command that will jump to the commit_creds address, thus, almost making a call. Use the ROPGadget program to find such a gadget: run the command ROPGadget vmlinux | grep "pop rdi ; ret" and check the address of the found piece of code.

Save this address for future use.

A few words about the test kernel and simplifications

This is an important point since the kernel has been built with the disabled “Stack Protector buffer overflow detection” option. Although this kernel is used just as an example, enabling this option will most likely render the module invulnerable. To be specific, you won’t be able to escalate privileges, but can easily crash the kernel.

This function adds a ‘stack canary’, a random number that is pushed into the stack at the beginning of the function and checked at the end. Accordingly, if you rewrite something, kernel will understand that somebody is trying to hack it and will stop working.

On the other hand, you have probably noticed the word nokaslr in the append parameter of the QEMU startup command. The kernel, similar to any program in userspace, doesn’t want to be hacked. Therefore, there is such a thing in userspace as ASLR (Address Space Layout Randomization).

Imagine that you have a program that has the function you need at the address 0x50000. The problem is that it cannot be executed directly in the code, but there is another function that has a buffer overflow vulnerability. In the absence of ASLR, a hacker can jump to this function and crack the program; but if ASLR is enabled, then the address of the target function changes randomly. As a result, the hacker first needs to find out the base address of the program and then calculate the real address of the function. ASLR was invented to make the exploitation of vulnerabilities much more difficult. Similar to ASLR, kaslr was created for the kernel with the purpose to randomize its base address. Accordingly, the address received at the last step would be incorrect if kaslr is enabled. Therefore, to simplify the exploitation, you turned off kaslr using the nokaslr parameter.

Final strategy

Overall, you have to perform five operations:

1. Overflow the buffer with garbage data;
2. Jump to pop rdi; ret;
3. Write init_cred to RDI;
4. Jump to commit_creds; and
5. Return from the system call without any incidents.

You already know how to perform operations 2, 3, and 4. The only remaining steps are 1 and 5.

Overflow

Let’s examine the module code, namely the vuln_write function, once again:

You don’t know how the compiler will store int i (i.e. whether it will be on the stack or in a register); therefore it’s time to review the disassembler output for this function.

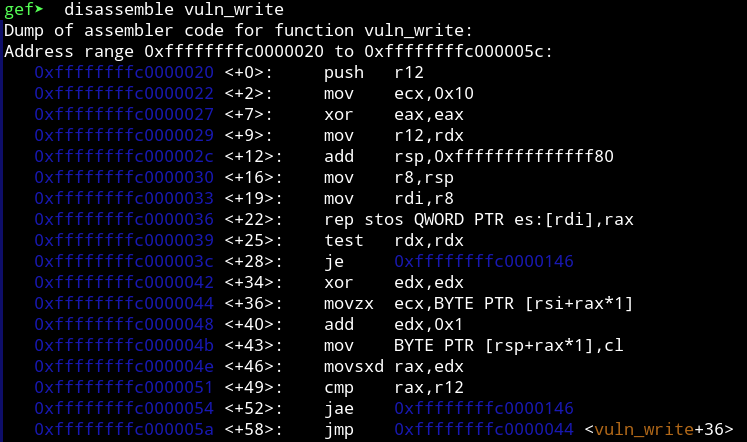

To do this, you have to load the module code to GDB. First, run lx-lsmod provided in vmlinux-gdb.py and find out the address of the vuln module. Knowing the base address of the module, you can load vuln.ko. Execute the command add-symbol-file ./vuln/vuln.ko <address> where address is the hexadecimal value taken from lx-lsmod. The function name is vuln_write; so, type disassemble vuln_write.

You don’t need all these scary-looking instructions: select only those that operate with the stack. The first one is push r12; at the end, it will be returned by pop r12. This means that 8 bytes are already occupied. Next is the instruction add rsp,0xffffffffffffff80; in fact, it doesn’t add to, but instead subtracts from rsp~ 0x80. Note that 0x80 is decimal 128. In other words, this function allocates 128 bytes for the buffer and 8 more bytes to store r12, i.e. 128 + 8 = 136 bytes.

By the way, if you look further, you will see that the i variable is the edx register (i.e. the lower 32 bits of the rdx register). The return address from vuln_write will be located immediately after the above-mentioned 136 bytes. So, to overflow the stack, you first have to fill 136 bytes with garbage data and then use a ROP Chain. Traditionally, A characters are used as garbage; so, your exploit will begin with 136 A characters. Knowing how to overflow the stack, you can proceed to the last point of this exploitation experiment.

Return from the system call

Here is a slight problem: you will overwrite exactly four 64-bit values on the stack after r12, but this stack is, in fact, of no importance to you. Furthermore, the stack will be shifted by these 32 bytes. Therefore, there is no sense to return to the address where vuln_write was initially supposed to return: the kernel can get to a wrong address and crash. To find out where to jump, you need to debug a little more and find out where should vuln_write return.

Monitoring the vuln_write execution

Set a breakpoint at vuln_write using the GDB command hbreak vuln_write. Then type continue and resume the kernel operation. Enter the echo asdf > /dev/vuln command in QEMU to initiate writing asdf to /dev/vuln. Note that the kernel has paused and switch back to GDB. Using the ni command, you have to get to the ret instruction. Exit the function using ni and continue moving forward until you reach the pop instructions. As you can see, there are only six of them prior to ret.

As said above, the stack is shifted by 32 bytes, but out of this amount, 8 bytes are occupied by the ret instruction at the end of vuln_write. This means that the stack is broken by 24 bytes. To fix it, you have to skip three pop instructions. Although there is some code prior to these instructions, you have no choice but to ignore it. Remember the address of the 4th pop instruction (pop r13). You will jump to it after executing vuln_write. Finally, you are ready to write the exploit.

Exploit

Make sure that GCC and a text editor (e.g. Vim) are installed in rootfs.img. This has to be done outside of QEMU because QEMU doesn’t have access to the Internet, and these packages cannot be installed from inside.

Getting addresses

To obtain the addresses of init_cred and commit_creds, execute the print &init_cred and print commit_creds commands in GDB.

Exploit as it is

The exploit will be written in C (which is logical for kernel exploitation). First, open /dev/vuln for writing only. You will write to it the buffer containing your payload. The payload consists of 136 A (or whatever) characters followed by the sequence of pop rdi ; ret, init_cred, and commit_creds addresses and ending with the pop r12 return address.

Important: the addresses will be written in reverse order (e.g. if the init_cred address is 0xffffffff8244d2a0, it will be written as \xa0\xd2\x44\x82\xff\xff\xff\xff). This is because x86_64 is a little-endian architecture. After creating the payload, write it to /dev/vuln. As a result, the exploit process should gain superuser rights. To get a shell on behalf of the root, execute the command execve("/bin/bash", 0, 0);. The exploit code should look something like this:

Running the exploit

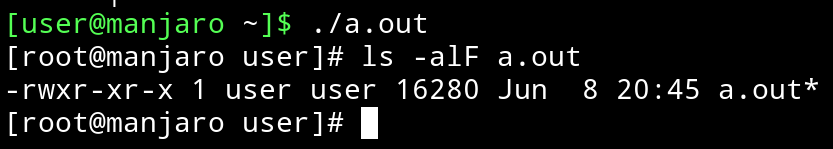

Make sure that you act on behalf of an unprivileged user. Log in as user, compile the exploit with GCC, run it and… Voila! You can see that bash has started on behalf of the superuser. Note that root doesn’t own the binary, and the setuid bit isn’t set on it: this confirms that the kernel has been hacked.

Conclusions

Congrats! You have successfully completed the following tasks:

1. Compiled a kernel with debugging symbols;
2. Learned how to write a module and compile it;
3. Built a root file system (rootfs) for the kernel to start with;
4. Wrote a small oneshot module for systemd;
5. Learned how to debug the kernel with GDB;
6. Learned the ROP concept; and
7. Used this trick to hack the kernel.

Of course, this was just a small step towards real-life kernel exploitation. As mentioned above, if KASLR or Stack protector were enabled, kernel exploitation would be impossible (or significantly more difficult). Still, I hope that this experience was interesting and useful to you. Good luck in your further pentesting endeavors!
