Kali Ashes: Hardening hacker distribution and mastering silent pentesting techniques

To automate the setup procedure, I recently released a tool called F31. Let’s examine this Bash script in detail and see what it does.

Information presented in this article and F31 don’t provide a 100% guarantee that you circumvent systems monitored by SOC; however, they significantly reduce detection risks. Each pentesting audit is unique, and it’s hardly possible to find a universal solution. I have no doubt that there are plenty of other ways to reduce noise on the air. But this article is focused just on the main aspects.

Above

Above is another tool written by your humble narrator. This is an invisible network protocol sniffer designed to search network equipment for vulnerabilities. Its operation is limited to traffic analysis, which doesn’t create any noise on the air.

Above supports the following protocols:

• L2: CDP, LLDP, DTP, 802.1Q Frames;
• L3: OSPF, EIGRP, VRRP, HSRP; and
• L7: LLMNR, NBT-NS, MDNS, SSDP, MNDP.

By the way, Above was recently included in Kali Linux! Now you can install it directly from Kali repositories:

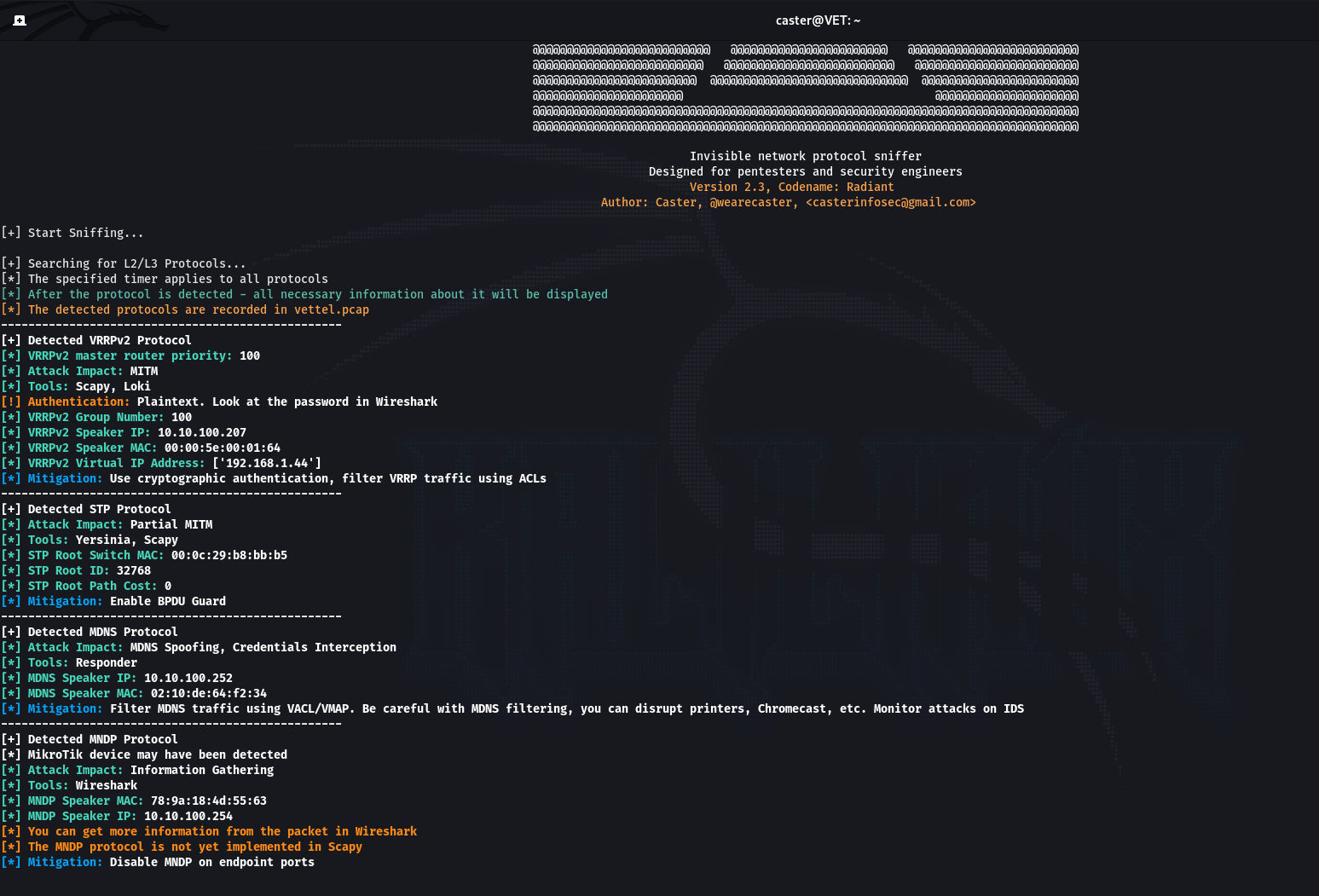

To start traffic analysis, use the following command:

where

• --interface eth0 is the system interface;
• --timer 250 is analysis duration; and
• --output-pcap is the traffic dump file: Above will write to it everything it finds.

Above can be used to identify attack vectors suitable for the target network without creating any noise on the air.

Accessing repositories

If you access Kali repositories during a pentesting audit, SOC would immediately detect this. Even if you enable access to repositories via HTTPS, you can still be exposed by the DNS request.

Manipulations with system hostname

Yes, a recommendation to change the Kali hostname might sound like a joke. But the harsh truth is that the default Kali hostname is the main indicator used to detect this distribution on the network.

The solution is ridiculously simple: you change the system name and prohibit the transmission of its hostname in DHCP packets (that are sent when an attacker tries to receive an address on the network).

To disable the transmission of the system name via DHCP, add the dhcp-send-hostname=false parameter in NetworkManager connection files:

TTL

In Linux distributions, the TTL value is 64. But you can change the default TTL value in the system. For instance, if you want to impersonate Windows, set TTL to 128.

If you intend to deliver a MITM attack on the network, you can hide your address in the traceroute from legitimate hosts. The trick is very simple: you change TTL with an increment of +1:

Disabling NTP

Your system can access the NTP server on a regular basis to synchronize the current time. In Kali, NTP is periodically accessed via DNS.

Good news is that time synchronization in Kali can be easily disabled:

Netfilter

Your goal is to allow established and interrelated connections, block invalid ones, and block TCP segments with suspicious TCP MSS values. Also, you have to filter ICMP traffic and disable pings. Important: make sure you don’t accidentally block ICMP Type 3 that enables the PMTUD system to avoid excessive fragmentation.

Disabling ICMP Redirect

ICMP redirects occur during MITM attacks. ICMP redirect messages can trigger IDS/IPS systems, thus, compromising the attacker’s actions. Let’s disable these messages.

Randomizing MAC address

Classics of the genre: changing the MAC address on your interface. I assume this trick doesn’t require elaboration.

You can also configure NetworkManager so that your MAC address changes to a random value every time you connect to the network.

Noise minimization

Pentesters extensively use scanners (Netdiscover, Nmap, etc.) in their work. When these scanners are run with default settings, they create much noise on the air. As a result, detection risks increase, and there is a chance to overload the network switch (especially when it comes to fast ARP scanning). In addition, the Storm Control system (that controls UCAST/MCAST/BCAST traffic) can raise the alarm.

I found a way to minimize noise on the air by restricting the bit rate on the system interface. You can reduce it to 30 kb/s and set latency to 800 ms; as a result, Netdiscover won’t cause overload on the air. Of course, such a fix affects the scan speed and data transfer rate, but it allows you to avoid overload. The above values were determined experimentally; feel free to adjust them if necessary.

For traffic shaping, I used the tc (traffic control) utility:

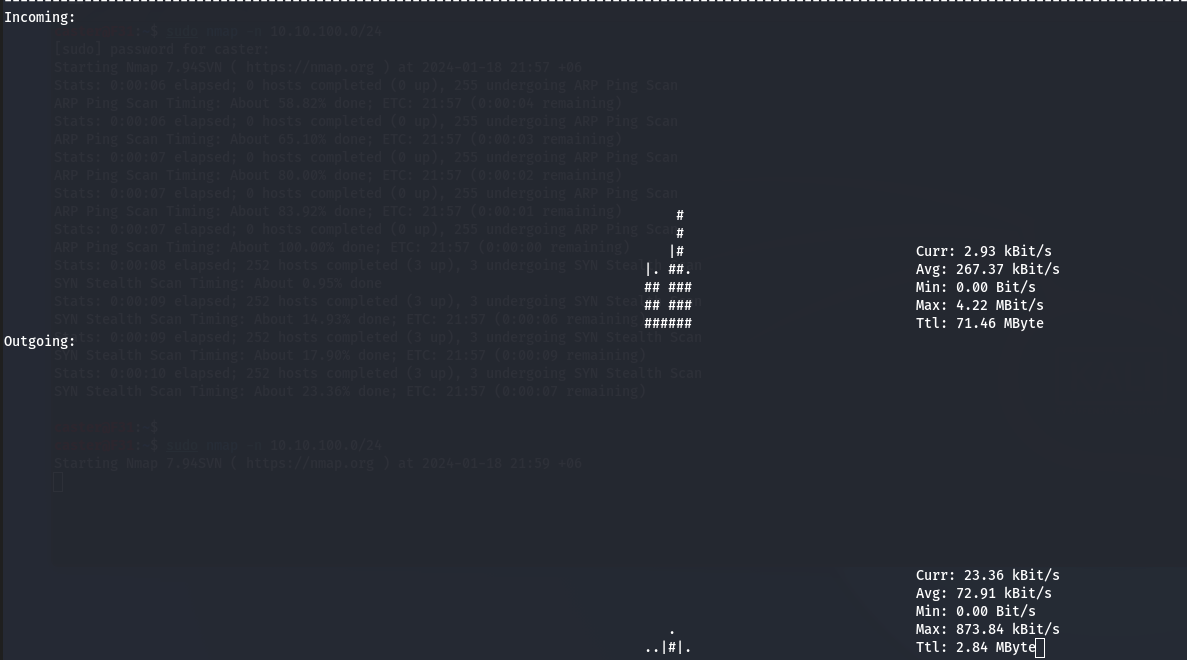

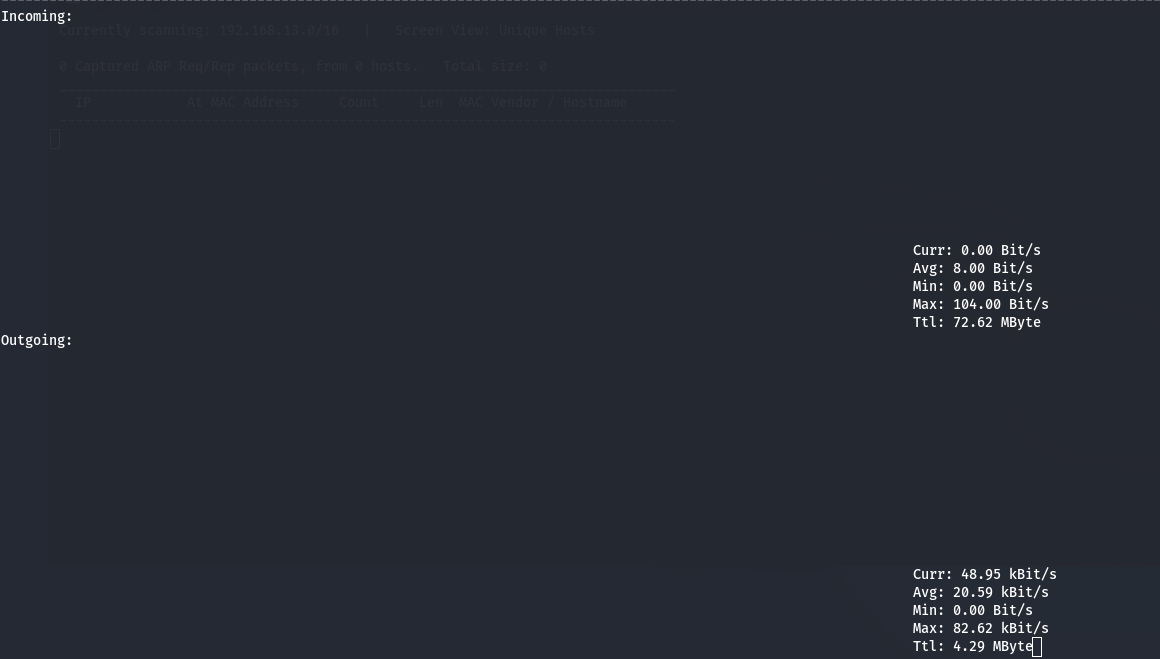

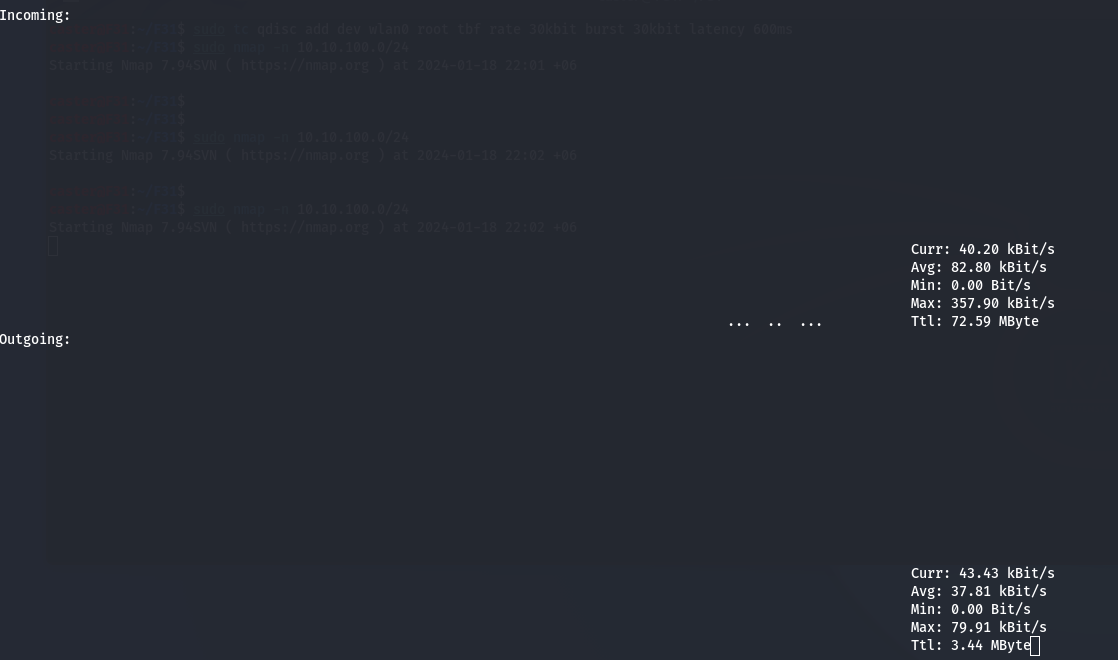

The screenshots below show the Netdiscover and Nmap scanners in action. The commands were as follows:

Pay attention to the Outgoing section: the nload utility shows outgoing traffic.

To delete traffic shaping settings, use the following command:

F31

The F31 script automates the entire setup process. It’s fully customizable and must be run with special arguments.

To revert all changes, I wrote a script called reset.sh; you can find it in the F31 repository:

Conclusions

Now you are familiar with the main techniques used to minimize noise on the air and harden Kali Linux. At all stages of Kali Linux setup, the main focus is put on the network level. It’s hardly possible to write a comprehensive SOC circumvention manual, and, of course, it’s impossible to fit all information into a single article. In the future, I intent to continue the Kali Ashes series. See you soon!
